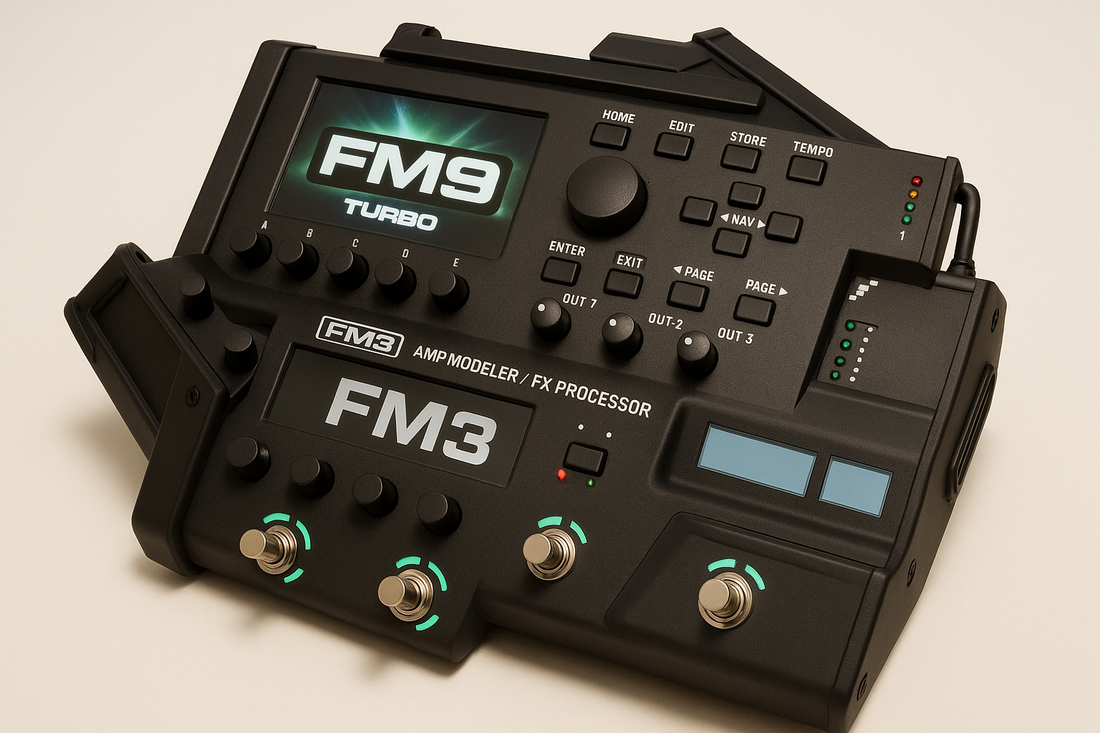

Fractal FM9 vs FM3: A Super-Technical Comparison for Power Users

Fractal FM9 vs FM3: A Super-Technical Comparison for Power Users

Fractal FM9 vs FM3: A Super-Technical Comparison for Power Users

Fractal Audio’s floorboard line centers around two closely related but strategically different processors: the FM9 and the FM3. They share the same core modeling platform and firmware lineage derived from the Axe-Fx III, but they diverge in physical ergonomics, DSP resources, USB capabilities, and headroom for complex presets. Understanding these differences at a granular level helps you design presets that are both sonically ambitious and performance-reliable.

Executive Overview (What Changes in Practice)

  • Sound engine parity: The underlying amp/cab/effects algorithms are the same family across FM3 and FM9, and both run current Axe-Fx III-class modeling with scenes/channels. Tonal quality is not a “tiered” experience; the difference is how much you can run at once and how flexible the routing can be before you run out of CPU. (General platform parity; see DSP normalization and block/channel parity notes below.

  • DSP & headroom: The FM9’s processing power is roughly double that of the FM3. Think of the FM3 as a single dual-core Analog Devices DSP platform, while the FM9 implements two of those dual-core DSPs and adds dedicated allocation strategies for heavy blocks (notably Reverb and Delay) so that “real estate” on the grid scales more gracefully. Normalized to Axe-Fx III = 100% power, the FM9 is ~50% and the FM3 ~25%. That’s a huge practical difference when you pile on dual amps, dual cabs with multi-mics/Dyna-Cabs, multiple delays/reverbs, pitch, and time-domain modifiers.

  • Foot control: The FM9 provides nine on-board switches with color-coded mini-displays and native access to more layouts and direct mappings. The FM3 has three onboard switches but relies on layouts/pages and optional external controllers to reach the same control surface breadth. Both use the same “FC-style” layout/tap/hold concept, so the workflow is conceptually identical, but the FM9 gives you more “first-touch” controls underfoot.

  • USB audio: FM9 supports 8×8 USB audio I/O at 48 kHz/24-bit, allowing multi-channel playback, parallel re-amping, and flexible routing scenarios. FM3 supports 4×4 USB audio I/O, still excellent for DAW integration but with fewer simultaneously addressable streams.

  • Form factor: The FM9 is physically larger and heavier (roughly 20.2″ × 9.2″ × 3.5″; ≈ 12 lb), approximating an FC-12 footprint. FM3 is compact pedalboard-friendly. This impacts case/board selection and stage footprint.

  • Mark II Turbo refreshes: Both families have “Turbo” iterations and (for FM9) “Mark II Turbo,” with ~10% additional DSP headroom and larger, more legible switch displays—quality-of-life upgrades rather than architectural changes.

The rest of this article gets into the weeds: signal flow, per-block constraints, CPU budgeting, controller topologies, and studio/live patterns.

1) DSP Architecture & Processing Model

1.1 Core DSP Topology

The FM3 runs on a single dual-core Analog Devices DSP within Fractal’s “Griffin” 3-core SoC (one ARM + two SHARC+ cores). The FM9 effectively doubles the dual-core DSP hardware (two AD dual-core DSPs), plus system resources to handle the increased footswitching, displays, and I/O. Normalized compute guidance used by Fractal indicates: Axe-Fx III ≈ 100%, FM9 ≈ 50%, FM3 ≈ 25%. Translate that to block budgeting: on FM9, you can often fit a second amp/cab path, a more elaborate ambience chain, or a more stacked pre-gain/post-gain effects suite before hitting CPU limits.

1.2 Dedicated DSP Allocation (Practical Implications)

While precise allocation can vary by firmware, the FM9 benefits from partitioning heavy effects (notably Reverb and Delay) to specific cores. This matters because heavy time-domain processing can otherwise starve other blocks under sustained high-diffusion or long-tail settings. It’s one reason FM9 presets with lush verbs remain stable while the FM3 might require trimming diffusion times, turning down quality modes, or simplifying the chain. (Community-documented behavior; planning assumption rather than a hard guarantee.)

1.3 CPU Budgeting & Meters

Both units expose a CPU meter tied to the grid. CPU consumption is block-type-dependent and parameter-dependent (e.g., higher quality modes, stereo vs. mono, oversampling settings, number of IR taps in Cab, etc.). FM9’s higher ceiling translates to more forgiving experimentation: you can add a second Cab block with dual IRs or Dyna-Cab mic pairs, keep Pitch shifting in high-quality modes, or run Multitap delays feeding long Reverb tails without constant trade-offs. FM3 can still do deep chains; it just requires more surgical choices (mono where acceptable, fewer parallel rows, shared blocks across scenes, etc.). (General engine behavior consistent across product family and manuals.)

2) Amp Modeling, Channels & Scenes

2.1 Engine Parity

FM3 and FM9 run the same generation of amp modeling and share the same block/channel paradigm: most blocks offer four channels, each a “preset within a block,” with instantaneous switching. Scenes snapshot bypass states and channel selections for each block. This is crucial live: you can have Amp A/B/C/D all ready on one block (Deluxe, Plexi, Recto, FAS Modern, etc.) and recall them instantly within the preset, avoiding the audio gaps that can accompany cross-preset changes.

2.2 Dual-Amp Considerations

By design, FM9 is comfortable with two Amp blocks plus two Cab blocks (or one Cab with dual IR lanes) in many presets, enabling stereo amp blends, wet/dry/wet architectures, or four-cable-method integrations with an external amp while still keeping a full internal amp path. FM3 can absolutely run complex amp sounds, but it’s usually constrained to one Amp block and more careful Cab choices. In practical terms, many FM3 users lean harder on Scene/channel recalls rather than truly parallel, always-on dual-amp rigs. (Capability framing per DSP budget and block availability; see power normalization.)

2.3 Cab & Dyna-Cab Workflow

Both support UltraRes™ IRs and Dyna-Cab™ (mic-position modeling) inherited from Axe-Fx III. Dyna-Cab introduces parameters that magnify CPU depending on mic models and routing. On FM3, budget Dyna-Cab usage wisely—especially in stereo or parallel rows. On FM9, you can push further with multi-mic captures and keep post-cab “air” blocks without compromising stability. (Family feature set per Fractal’s lineup overview.)

3) Effects Blocks: What You Can Run and For How Long

3.1 Reverb, Delay, Pitch, and Modulation

Reverb and Delay are the heavy hitters in time-domain compute—especially with high diffusion, long decay, shimmer/pitch components, or multitap patterns. On FM9, the architectural split means long ambient tails and stacked delays are easier to sustain on stage. On FM3, the same textures are possible, but you’ll often:

  • prefer mono where stereo width isn’t mission-critical,

  • dial down quality/Hi-Cut/Size or diffusion where possible,

  • move shimmer duties to Pitch (pre-verb) or use simpler shimmer types,

  • swap Multitap for a single Delay with diffusion or attach a short chorus/Dimension block for width.

Community documentation and forum notes routinely observe that the FM9 tolerates heavier ambience chains before hitting the CPU wall, while the FM3 requires more trade-offs. (Community guidance re: reverb/pitch options and CPU behavior.)

3.2 Dynamics/EQ/Drive/Comp

These are comparatively light, but oversampling, stereo operation, or running many instances can add up. In dense gain staging (Input Boost, Drive into Amp, post-Amp EQ, multiband comp for palm-mutes, etc.), FM9 lets you pile more processors, which is helpful if you do genre-spanning sets (e.g., modern metal to Nashville clean in one preset). FM3 can still do it, but you’ll be more scene-centric and less parallel.

3.3 Pitch Tracking & Harmonies

Pitch algorithms (Detune, Whammy, Intelligent Harmony) cost compute and introduce latency trade-offs. FM9’s extra headroom helps keep pitch features active while you also run stereo verbs/delays and post-cab mastering EQ. FM3’s best practice is to consider scene-based toggling (e.g., harmonizer enabled only in the solo scene), or to keep heavy pitch before the amp in mono. (General CPU planning guidance.)

4) Grid, Routing, and Latency

4.1 Grid Depth

Both units present the modern Fractal grid with parallel/series routing, shunts, and flexible block order. The key difference is not capability but capacity—how many lanes and processors you can run concurrently before the CPU meter complains. FM9 is simply friendlier to symmetrical stereo designs and persistent wet/dry splits that remain “always on.”

4.2 Latency Considerations

Overall system latency is low across both devices and typically inaudible, dominated by block choices (pitch, convolution IR length, certain modulation modes) rather than “the box.” Using S/PDIF or USB monitoring introduces the same fundamental constraints as any digital rig. If you do extensive DAW round-trip monitoring, the FM9’s 8×8 USB lets you tailor monitor mixes and re-amp lanes to keep your live feel intact. (USB capabilities cited below. )

5) I/O, Digital Audio, and USB

5.1 USB Channels and Sample Format

  • FM9: 8×8 USB audio, fixed 48 kHz/24-bit. This allows, for example, stereo processed outs, DI taps for re-amping, click/track playback from the DAW to physical outputs, and a separate feed for in-ears—all at once. The FM9 also integrates an Input USB block on the grid, which is a powerful routing tool to process computer audio through any chain you like.

  • FM3: 4×4 USB audio, fixed 48 kHz/24-bit. You still get processed out + DI re-amp round trips and basic playback, but with fewer channels. The FM3 notably does not implement the Input USB block, so you route USB playback via the Output or Input block options in Setup rather than a dedicated grid block.

5.2 S/PDIF and Analog Ins/Outs

Both provide robust analog I/O for instrument, outputs for FRFR/FOH, and headphones (check product-specific jacks), plus S/PDIF at 48 kHz for digital chain integration. If you prefer a digital snake or a clocked studio environment, S/PDIF gives you a fixed-rate digital handoff without extra conversion latency. (Per owner’s manuals and family behavior; FM3 manual explicitly documents S/PDIF Out.)

5.3 MIDI and Editor Connectivity

Both integrate with editor software (FM3-Edit, FM9-Edit) over USB using Fractal’s COM-over-USB channels. FM3 is not a USB-MIDI device; it uses its own transport for the editor/Bot. For DAW MIDI automation, standard DIN MIDI remains the generic method (or via auxiliary controllers). (This is sometimes a surprise to new users; it’s by design.)

6) Control Surface & Footswitching

6.1 On-Board Switches

  • FM9: Nine footswitches with mini-displays. With the Mk II Turbo, those displays became larger and easier to read—an appreciable live upgrade. More hardware switches mean fewer layout hops mid-song and greater one-press coverage of your set (presets, scenes, per-block channels, and per-block bypass).

  • FM3: Three footswitches. The system still uses “Layouts” and “Tap/Hold” definitions, so you can map 12 logical switches across pages, but you will page more often unless you add external switches or an FC controller.

6.2 External Pedals and FC Controllers

Both units accept expression pedals and external switches; the exact port count differs. FM9 provides three pedal inputs; FM3 offers two, though a Y-cable can split to dual switches per input. For maximum under-foot control on FM3, many players add an FC-6, FC-12, or a MIDI controller. (FM9 FAQ and controller documentation.)

6.3 Practical Mapping

Seasoned users exploit “Layouts” with consistent logic: e.g., Layout 1 = Preset/Song navigation; Layout 2 = Scenes; Layout 3 = Drive/Mod/Time FX toggles; Layout 4 = Per-block channels; Layout 5 = Looper; Layout 6 = Utility (Tuner/Tap Tempo). On FM9, more of that fits on one page. On FM3, the second-nature habit is to press-and-hold left/right for rapid layout paging.

7) Preset Design Patterns: FM9 vs FM3

7.1 Single-Preset Setlists (Do-Everything Preset)

FM9 excels at “one preset per song family” or even “one preset for a whole set” designs. You might run:

  • Parallel amp paths (rhythm + lead) feeding stereo Cab,

  • Post-cab mastering (multiband comp, room EQ),

  • A wet bus (dual or multitap delay → long hall or shimmer),

  • A dedicated pitch lane for harmonies/detune,

  • Utility blocks (GEQ for different cabs/rooms, filter boosts, etc.),

  • All always on, with scenes toggling channels and bypass states.

With FM3, you can still pursue an “always-on parallel” architecture, but most users reserve that for particular songs and otherwise rely on channels/scenes, swapping heavy blocks off when not needed.

7.2 Stereo Ambience & W/D/W

FM9 gives you spacious stereo differences with fewer compromises:

  • Dual delays with independent time constants feeding a high-quality long reverb,

  • A clean chorus/flanger lane in parallel to preserve image while the dry stays punchy,

  • Post-sum mastering EQ and limiter before Output 1 for FOH consistency.

On FM3, you might branch only at the end (mono to stereo) or run a single delay plus a lighter reverb, saving heavier verbs for solos.

7.3 Pitch-Heavy Shows

If you run significant Whammy, Intelligent Harmony, or wide Detune layers and want them always active, the FM9 will maintain margin for cabinets and ambience. On FM3, it still works—but plan to toggle heavy blocks per scene or simplify other time-domain effects to leave headroom for pitch.

8) Studio Integration

8.1 Re-Amping Workflows

  • FM9 (8×8): Record processed stereo (1/2), DI (3/4), and even additional buses simultaneously. Later, route DAW outputs (e.g., 3/4 back into Input USB on the grid) to re-amp while monitoring processed returns (1/2) and click/guide (5/6) to headphones or a separate output. The dedicated Input USB block on FM9 enables elegant, explicit routing of DAW feeds into your preset signal path.

  • FM3 (4×4): Record processed stereo (1/2) and DI (3/4). For playback, you can route DAW 1/2 to Output 1 (unprocessed) or into the grid depending on setup options. It’s streamlined but fewer lanes are available simultaneously. (Also note: FM3 is not a USB-MIDI device by design.)

8.2 S/PDIF & Digital Chains

Both boxes can hand off a fixed 48 kHz digital stream to an interface that accepts S/PDIF. In rooms where clocking and digital gain staging are controlled centrally, this avoids an extra conversion and preserves the exact internal mix.

8.3 Editing & Automation

FM3-Edit and FM9-Edit are mature and fast. For DAW-driven shows, MIDI via DIN remains the generic automation path. You can automate scene changes, channel changes, bypass states, and tap tempo. (FM3’s editor transport is COM-over-USB, not USB-MIDI.)

9) Live: Monitoring, Switching, and Reliability

9.1 On-Stage Monitoring

If you run in-ears and feed click/tracks from a DAW:

  • FM9 lets you return discrete stems over USB and patch them to a headphone or output bus while FOH receives the main stereo. This keeps your personal mix decoupled from front-of-house decisions.

  • FM3 can achieve a basic version of this but with fewer stems, so you may combine click + guide into one stereo return, or move those duties to the venue monitor desk.

9.2 Switch Layouts for Real-Time Control

Nine switches on FM9 mean you can dedicate top row to Scenes, bottom row to effect toggles, and a couple for tap/tuner/utility without paging. On FM3, you’ll use Layout paging and (optionally) one or two external dual footswitches to emulate a 5–7 switch surface—still compact and travel-friendly. (FC footswitch functions system applies to both.)

9.3 Stability Under Load

Both devices are road-proven. However, because the FM9 keeps more compute in reserve under heavy ambience or pitch scenarios, it’s less likely you’ll clip the CPU meter in a moment of exuberant performance (e.g., stacking a hold-to-solo boost that adds another EQ/drive/long delay while tails are still decaying). Power users on FM3 simply design around this with scene discipline.

10) Physical Considerations

10.1 Size & Weight

  • FM9: ≈ 20.2″ × 9.2″ × 3.5″; about 12 lb. It’s the size class of an FC-12 controller, which influences pedalboard and case selection.

  • FM3: Much smaller and lighter—ideal for fly dates and tight stages. If you rely on many foot actions, plan for external switches or a compact MIDI controller.

10.2 Mark II Turbo & Display Readability

On both FM3 Mk II Turbo and FM9 Mk II Turbo, the footswitch mini-displays increased in readability (larger fonts, better clarity). The Turbo silicon also bumps available DSP by ~10%, which can be just enough to keep a favorite chain intact at showtime.

11) Choosing Between FM9 and FM3 by Use-Case

11.1 Fly-Rig, Session Bag, or Minimalist Boards → FM3

If air travel, weight, and footprint are top priorities, the FM3 is the obvious pick. You’ll still get Axe-Fx III-class modeling, scenes/channels, UltraRes/Dyna-Cab, and pro-grade USB audio. The trade-off is mainly how you build presets: more scene-oriented, fewer always-on parallel lanes, and a practical cap of one Amp block per preset in most complex builds. If you need broader control, add a compact dual footswitch or a small MIDI controller.

11.2 All-In-One Stage Brain with Fewer Compromises → FM9

If you want your floorboard to be the entire rig—amps, effects, looper, in-ears routing, click returns, and minimal paging—FM9 is the better canvas. The 8×8 USB, nine switches, and double DSP all converge to let you treat the grid like a small mixing desk. For bands spanning many styles, or for complex ambient/post-rock textures, the FM9’s extra space is a daily quality-of-life upgrade.

12) Practical Build Recipes

12.1 FM3: CPU-Aware Modern Rock Preset (Mono-In, Stereo-Out)

  • Input → Gate (conservative, scene-linked threshold)

  • Drive (low-gain boost, mid-hump optional)

  • Amp (4 channels: Clean, Edge, Crunch, Lead; utilize Scene-linked channel changes)

  • Cab (stereo, single Dyna-Cab per side; keep mic complexity moderate)

  • PEQ (post-cab surgical notch; width/narrow Q on resonances)

  • Delay (single, with diffusion; tempo-tied)

  • Reverb (plate or small hall; moderate quality; tails long only in solo scenes)

  • GEQ (scene-based level trim for FOH)

  • Out 1 (to FRFR/FOH)

CPU savings: one Delay instead of multitap, moderate Reverb quality, limit post-cab chain to EQ + one time-domain block in most scenes.

12.2 FM9: Stereo Dual-Amp + Wet Bus

  • Input → Comp (light)

  • Drive (pre-boost)

  • Amp 1 (rhythm) → Cab 1 (dual IR or Dyna-Cab stereo)

  • Amp 2 (lead) → Cab 2 (dual IR or Dyna-Cab stereo)

  • Sum to mixer → split:

    • Dry path → PEQ/Limiter → Out 1

    • Wet bus: Chorus/Dimension → Dual Delay/Multitap → Long Hall/Shimmer (high quality) → Out 1

  • Pitch lane (pre-amp detune/whammy) on parallel row, engaged only in lead scenes

  • USB: route DAW click to separate outputs for in-ears

This arrangement keeps dynamics tight on the dry path while the wet bus preserves stereo image and depth. The FM9’s spare DSP ensures stability when tails overlap across scenes.

13) Editor & Workflow Tips

  • Channels > Presets for fast tone switches. Build four core tones per Amp block channel and wire Scene changes to channel changes instead of swapping presets mid-song.

  • Cab management: Start with Dyna-Cab defaults, then adjust mic “distance” and “position” sparingly—small moves are audible. If CPU becomes tight on FM3, revert one side to a single IR or reduce stereo elements.

  • Reverb budgeting: Long, dense algorithms cost. Use scene-based quality or size modulation; consider pre-delays and hi-cuts to create depth at lower CPU.

  • USB re-amp discipline: Name your DAW I/O templates “FM9 1/2 Main,” “FM9 3/4 DI,” etc., or “FM3 1/2 Main,” “FM3 3/4 DI,” so re-amping is frictionless.

  • Footswitch layouts: Standardize across presets: bottom row Scenes, middle row toggles, top row utilities, so muscle memory carries over whether you’re on FM3 (+ext. switches) or FM9.

14) Specs Snapshot (Key Differences)

  • DSP/Power: FM9 ≈ 2× FM3; normalized power: Axe-Fx III 100%, FM9 50%, FM3 25%. In practice, FM9 sustains denser time-domain stacks and dual-amp rigs.

  • USB Audio: FM9 8×8 (with Input USB block on grid), FM3 4×4 (no Input USB block). Both 48 kHz/24-bit.

  • Footswitches: FM9 has nine with larger Mk II Turbo displays; FM3 has three, relies more on paging or external switches.

  • Form Factor: FM9 ~20.2″ × 9.2″ × 3.5″; ≈12 lb; FM3 markedly smaller/lighter.

  • Turbo Editions: ~10% more DSP plus larger displays (Mk II Turbo).

15) Edge Cases & Gotchas

  • CPU spikes on scene change: If tails overlap and new heavy blocks come online simultaneously (e.g., amp + reverb channel changes), FM3 is more likely to flirt with the CPU limit. Solve via staggered bypass/channel assignments or reduced quality modes.

  • Always-on pitch + long tails: On FM3 you may need to choose between “always on” wide detune and long/shimmer verbs. On FM9, you can often keep both live with margin. (Planning guidance consistent with DSP headroom observations.

  • MIDI expectations: FM3 is not a USB-MIDI device; plan DIN MIDI for DAW automation. (The editor still connects via USB.)

  • Board real estate: FM9’s footprint equals a typical “full board.” If you also want two expression pedals, plan a 24″+ rail and a suitably rated PSU and case.

16) Recommendation Matrix

  • You tour fly-dates or need the smallest pro rig → FM3.

  • You want one floor unit to run the entire show—dual amps, lush stereo ambience, multiple USB streams, nine switches → FM9.

  • You already own an FC-6/FC-12 → FM3 + FC can approximate FM9’s switching surface, but not its DSP headroom.

  • You’re a heavy ambience/pitch player → FM9’s extra DSP and 8×8 USB make life easier when building complex stereo rigs.

17) Final Thoughts

Both the FM9 and FM3 deliver the exact same generation of Fractal’s flagship modeling. The choice is less about “does it sound as good?” and more about how large and flexible your live/studio signal flow needs to be—and how many things you expect to control underfoot with no paging.

If you approach preset design like a systems engineer—budgeting CPU, architecting bus splits, and choosing where to spend time-domain compute—the FM3 is an extraordinarily capable, pro-grade, fly-ready solution. If your artistic vision leans toward always-on stereo complexity, dual-amp blends, and multiple independent USB audio paths for IEMs and re-amp workflows, the FM9 provides the headroom and control surface to make that painless.

Either way, you’re operating inside the same sonic universe—and that’s the point: Fractal’s platform coherence means your tones and techniques translate across the family. Pick the chassis that matches your logistics and your DSP appetite.
